P500QL1 Steel Plate P500QL1 Hot Rolled Steel Sheet P500QL1 Carbon Steel Plates
EN10028-6 P500QL1,EN 10028-6 P500 QL1 STEEL PLATE EN10028-6 P500QL1 standard specification forWeldable fine grain steels, quenched and tempered. P500QL1 Grade has a good weldable and used in high temperature equipment and pressure vesse.
P500QL1 Chemical Composition Max (%)
| Grade | C | Si | Mn | P | S | N | B |
| P500QL1 | 0.18 | 0.60 | 1.70 | 0.020 | 0.010 | 0.015 | 0.005 |
| Mo | Cu | Nb | Ni | Ti | V | Cr |
| 0.70 | 0.3 | 0.05 | 1.50 | 0.05 | 0.08 | 1.00 |
P500QL1 Mechanical Property
| Grade | Thickness | Yield | Tensile | Elongation |
| P500QL1 | mm | Min Mpa | Mpa | Min % |
| 6-50 | 500 | 590-770 | 17% |
| 50-100 | 480 | 590-770 | 17% |
| 100-150 | 440 | 540-720 | 17% |
P235GH/P265GH/P295GH/P355GH P275N/P275NH/P275NL/P275NL1/P275NL2 P355N/P355NH/P355NL/P355NL1/P355NL2
P420NH/P420NL1/P420NL2/P460NH/P460NL1/P460NL2 19Mn6/15Mo3/16Mo3/13CrMo4-5/10CrMo9-10/12CrMo9-10/X12CrMo5/ 13CrMoV9-10/13MnNi6-3/15MnNi6/12Ni14/X12Ni5/X8Ni9/X7Ni9/18MnMo4-5 P355Q/P355QH/P355QL1/P355QL2/P460Q/P460QH/P460QL1/P460QL2 P500Q/P500QH/P500QL1/P500QL2/P690Q/P690QH/P690QL1/P690QL2
1.specification range :
thickness:4.5-350mm
width:1500-4020mm
length:3000-18800mm
2. status: hot rolling, controlled rolling, normalizing, tempering, normalizing tempering.
3. According to specific requirements, we can provide high-temperature stretching, simulated post-weld heat treatment and control elements content and so on.
Packing Requirements
1. 25 tons/container and 5 tons/size for a trial order;
2. For 20" container the max length is 5.8m;
3. For 40" container the max length is 11.8m.
Could be done with your requirement.
Gnee is a leading steel stockist, distributor and exporter firm, our company passed the ISO9000,SGS international quality system authentication, and set up perfect marketing system and customer service network. Besides of Steel round bar, we also develop the business of Square pipe, Rectangular pipe, Stainless pipe and Welded pipe etc.
We always distribute the stainless steel round bar in competitive prices. We also established good relationships with other leading stainless steel manufacturers such as BAOSTEEL, ZPSS, LISCO, SKS.
We established good business relationship with clients from Kuwait, Russia, Ukraine, Lithuania, Greece, Belarus, Romanian, Belgium, Brazil, Argentina, Mexico, Tunis, Kenya, etc
1.Are you factory or trading company?
We are a factory and trading company. We have our own production line of cutting process. We can produce and ship according to the order.
2.The price you post on the website is the exact price?
What we publish on our website is the price range of steel plate reform. If you need, we can have a detailed discussion.
3.What’s your payment terms?
T/T or L/C.
4.Can you provide samples ? Is it free ?
Yes, we could provide the sample for free charge without freight.
5.What’s the delivery time?
It takes only one week to ship from stock, while customized products need to be negotiated according to the specific order requirements.
6.If you provide cutting and other service or not?
Of course we could provide cutting as required or according to the drawing. The surface treatment and the port of shipment are also according to the order.
Product Tags:
|
|

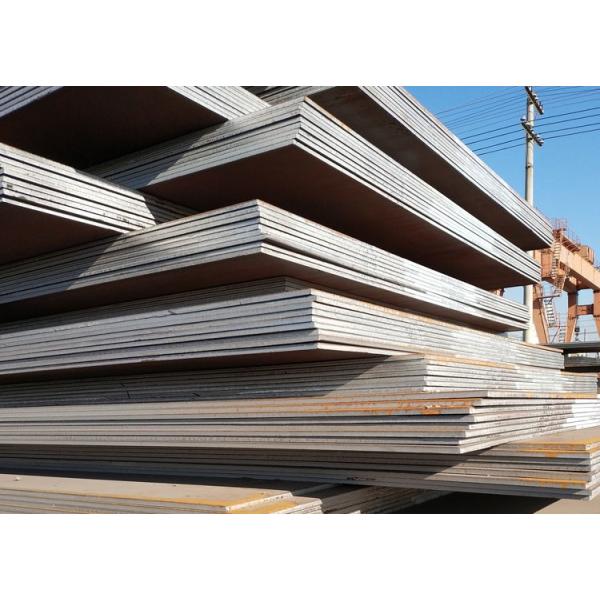

3mm P500QL1 Customized Size Cold Rolled Carbon Steel Sheet for Pressure Vessels Images
|
